Wayland Display Server Guide on Ubuntu 26.04

Wayland is the default and only display server protocol for GNOME on Ubuntu 26.04 Resolute Raccoon, replacing the legacy X11 session entirely. Whether you are a long-time Ubuntu user or new to the platform, understanding how Wayland works on Ubuntu 26.04 is essential for a smooth desktop experience. This comprehensive guide covers everything from verifying your session type and understanding XWayland compatibility to configuring environment variables and troubleshooting common issues. Consequently, you will be equipped to get the most out of the Wayland display server on your Ubuntu 26.04 system.

Software Requirements

Software Requirements and Linux Command Line Conventions

Category	Requirements, Conventions or Software Version Used
System	Ubuntu 26.04 Resolute Raccoon
Software	GNOME desktop environment (default), XWayland, PipeWire
Other	Privileged access to your Linux system as root or via the sudo command.
Conventions	# – requires given linux commands to be executed with root privileges either directly as a root user or by use of sudo command $ – requires given linux commands to be executed as a regular non-privileged user

Verifying Your Display Server on Ubuntu 26.04

Before making any configuration changes, it is important to confirm which display server your session is using. On Ubuntu 26.04, the GNOME desktop runs exclusively on Wayland, but verification is still a useful first step, especially when troubleshooting.

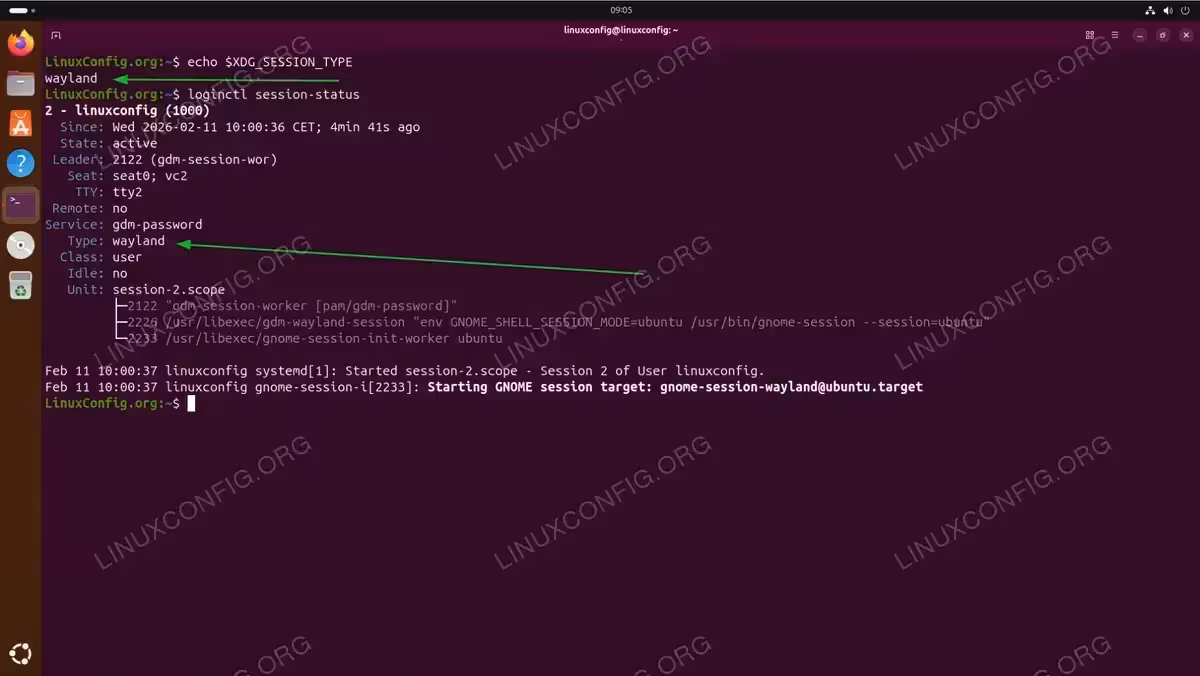

1. Check the session type environment variable: The quickest method to verify your display server is through the XDG_SESSION_TYPE variable. Open a terminal and run:

   $ echo $XDG_SESSION_TYPE

   If your session is running on Wayland, the output will be wayland. This environment variable is set by the login manager at session startup.

2. Use loginctl for detailed session information: For more comprehensive session details, use the loginctl command:

   $ loginctl show-session $(loginctl | grep $(whoami) | awk '{print $1}') -p Type

   This returns Type=wayland on a Wayland session. Additionally, you can view all session properties with:

   $ loginctl session-status

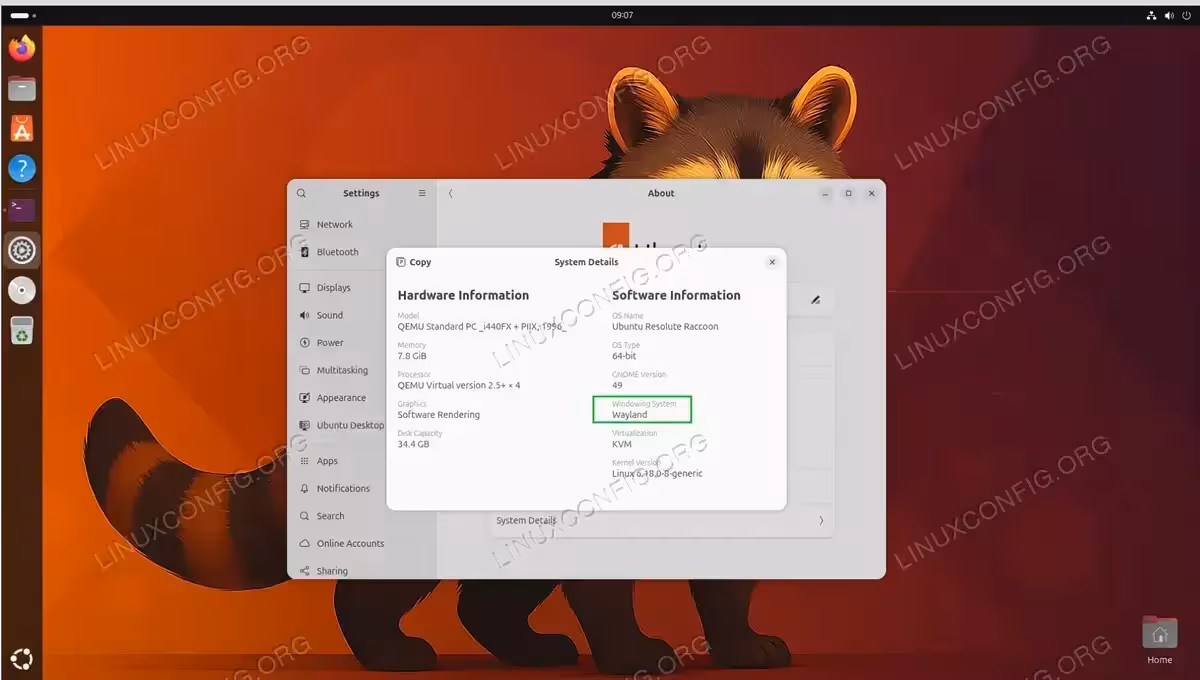

3. Verify from GNOME Settings: You can also confirm the display server graphically. Open Settings > About > System Details. The Windowing System entry will display Wayland.

Wayland vs X11: What Changed in Ubuntu 26.04

Ubuntu 26.04 marks a significant milestone by removing the X11 GNOME session packages entirely. In previous releases such as Ubuntu 24.04, users could choose between Wayland and X11 at the GDM login screen. That option no longer exists for GNOME on Ubuntu 26.04.

Why Ubuntu Dropped X11 for GNOME

The X Window System (X11) served as the default display protocol on Linux desktops for over three decades. However, its architecture carries inherent limitations that became increasingly difficult to work around. X11’s client-server model allows any application to capture input and read pixels from other windows, which creates a fundamental security weakness. Moreover, X11 lacks native support for modern features such as per-monitor fractional scaling, smooth multi-touch gestures, and efficient buffer management.

Wayland, by contrast, uses a compositor-based architecture where each application communicates directly with the compositor. Therefore, applications cannot snoop on each other, which results in significantly improved security. The protocol also handles display synchronization natively, which eliminates screen tearing without additional configuration.

Practical Impact for Users

For the majority of users, this transition is seamless. Modern GTK and Qt applications already support Wayland natively. However, some older applications, specific remote desktop workflows, and certain NVIDIA configurations may require attention. The sections below address these scenarios in detail.

Understanding XWayland Compatibility on Ubuntu 26.04

Even though Ubuntu 26.04 runs GNOME exclusively on Wayland, legacy X11 applications are not left behind. XWayland is an X11 server that runs as a Wayland client, providing a compatibility layer for applications that have not yet been ported to Wayland natively. It is installed by default on Ubuntu 26.04.

How XWayland Works

When you launch an X11 application on a Wayland session, XWayland intercepts the X11 protocol calls and translates them into Wayland protocol calls. The compositor then renders the application window alongside native Wayland windows. This process is transparent to the user, and most X11 applications run without any modification.

However, XWayland applications have certain limitations compared to native Wayland applications. They cannot take advantage of per-window fractional scaling, may exhibit slight input latency, and cannot use Wayland-native features such as secure clipboard isolation.

Identifying XWayland Applications

To determine which of your running applications are using XWayland rather than native Wayland, use the following methods:

1. Using xlsclients: This command lists all applications connected to the XWayland server:

   $ xlsclients

   Any application appearing in the output is running through XWayland. If you have no X11 applications open, the output will be empty.

2. Using the xeyes trick: Install and run the classic xeyes application:

   $ sudo apt install x11-apps
   $ xeyes

   The eyes follow your cursor only when it hovers over XWayland application windows. When your cursor is over a native Wayland window, the eyes stop tracking. This provides a visual method to identify which windows are running through XWayland.

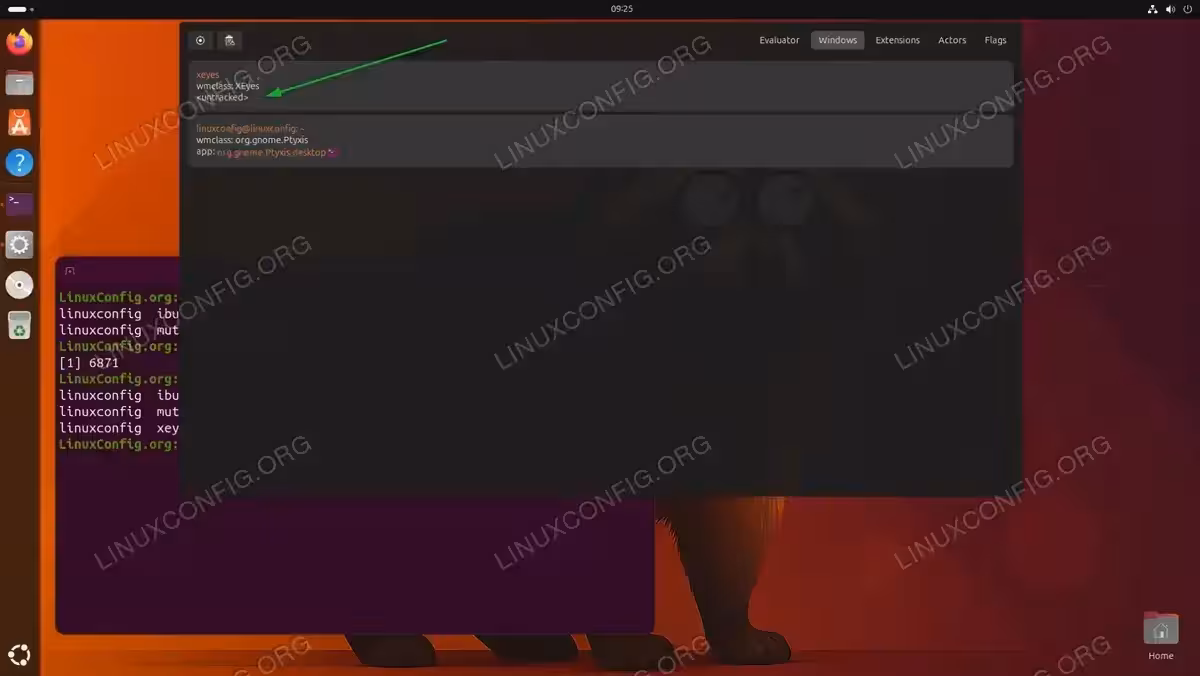

3. Using GNOME’s looking-glass tool: Press Alt+F2, type lg, and press Enter to open GNOME’s built-in inspector. Navigate to the Windows tab where each window’s type is listed, including whether it uses XWayland.

Configuring Wayland Environment Variables on Ubuntu 26.04

While many applications detect Wayland automatically, some require explicit environment variables to run natively on Wayland instead of falling back to XWayland. Configuring these variables ensures optimal performance and full integration with the Wayland compositor.

Per-Application Environment Variables

The following table lists the most commonly needed environment variables for Wayland on Ubuntu 26.04:

Common Wayland Environment Variables

Variable	Value	Affected Applications
MOZ_ENABLE_WAYLAND	1	Firefox (typically auto-detected on Ubuntu 26.04)
ELECTRON_OZONE_PLATFORM_HINT	auto	Electron-based apps (VS Code, Slack, Discord, etc.)
QT_QPA_PLATFORM	wayland	Qt5/Qt6 applications
GDK_BACKEND	wayland	GTK applications (rarely needed on GNOME)
SDL_VIDEODRIVER	wayland	SDL2-based applications and games

Setting Variables Globally

To apply environment variables for all applications system-wide, create a configuration file in /etc/environment.d/:

1. Create a Wayland environment configuration file:

   # sudo nano /etc/environment.d/90-wayland.conf

   Add the following content:

   ELECTRON_OZONE_PLATFORM_HINT=auto
   QT_QPA_PLATFORM=wayland

   This file is read by systemd at session startup and applies to all user sessions.

2. Log out and log back in: The changes take effect on the next login session. Verify the variables are set:

   $ env | grep -E "ELECTRON|QT_QPA"

Setting Variables per Application via Desktop Files

For individual applications, you can modify their .desktop files. For example, to force VS Code to use native Wayland:

1. Copy the desktop file to your local directory:

   $ cp /usr/share/applications/code.desktop ~/.local/share/applications/

2. Edit the Exec line:

   $ nano ~/.local/share/applications/code.desktop

   Change:

   Exec=/usr/share/code/code %F

   To:

   Exec=env ELECTRON_OZONE_PLATFORM_HINT=auto /usr/share/code/code %F

Troubleshooting Common Wayland Issues on Ubuntu 26.04

Since Wayland is now the only option for GNOME on Ubuntu 26.04, resolving any issues you encounter is essential rather than simply switching back to X11. The following sections cover the most frequently reported problems and their solutions.

Screen Sharing and Remote Desktop

Screen sharing on Wayland requires the PipeWire media framework and the xdg-desktop-portal system. Unlike X11, Wayland does not allow applications to capture screen content directly, which is by design for security. Instead, applications must request screen access through the desktop portal, which prompts the user for permission.

If screen sharing is not working in applications such as Zoom, Microsoft Teams, or Google Chrome:

1. Verify PipeWire is running:

   $ systemctl --user status pipewire pipewire-pulse wireplumber

   All three services should be active. If any are inactive, start them:

   $ systemctl --user enable --now pipewire pipewire-pulse wireplumber

2. Verify the desktop portal is running:

   $ systemctl --user status xdg-desktop-portal xdg-desktop-portal-gnome

   If the GNOME portal is not active, restart it:

   $ systemctl --user restart xdg-desktop-portal-gnome

3. Ensure the portal backend is installed:

   $ sudo apt install xdg-desktop-portal-gnome

   This package provides the GNOME-specific portal backend that handles screen capture requests on Wayland.

Fractional Scaling

Wayland on GNOME supports fractional scaling natively through the compositor. If text or UI elements appear too small on a high-DPI display:

1. Enable fractional scaling via GNOME Settings: Navigate to Settings > Displays and select a fractional scale value such as 125%, 150%, or 175%.
2. Enable fractional scaling via command line: If the option is not visible in Settings:

   $ gsettings set org.gnome.mutter experimental-features "['scale-monitor-framebuffer']"

   Log out and back in for the changes to take effect.

Note that XWayland applications may appear slightly blurry at fractional scales because they are rendered at integer scaling and then resized by the compositor.

Clipboard Issues Between Wayland and XWayland

Occasionally, copy-paste operations between native Wayland applications and XWayland applications may fail or behave unexpectedly. This occurs because Wayland and X11 use different clipboard protocols.

To resolve clipboard synchronization issues:

1. Install wl-clipboard: This utility bridges the Wayland and X11 clipboards:

   $ sudo apt install wl-clipboard

2. Test clipboard operations: Copy text from a native Wayland application and paste it into an XWayland application, and vice versa. If issues persist, restart the XWayland server by logging out and back in.

NVIDIA GPU Driver Considerations

NVIDIA proprietary drivers have historically been a source of Wayland compatibility issues. On Ubuntu 26.04, NVIDIA driver version 550+ with explicit sync support is required for a stable Wayland experience.

1. Verify your NVIDIA driver version:

   $ nvidia-smi

   Ensure you are running driver version 550 or later.

2. Ensure the correct kernel modules are loaded: Verify the nvidia-drm module is loaded with modesetting enabled:

   $ cat /sys/module/nvidia_drm/parameters/modeset

   The output should be Y. If it is not, add the following kernel parameter to your GRUB configuration:

   # nano /etc/default/grub

   Add nvidia-drm.modeset=1 to the GRUB_CMDLINE_LINUX_DEFAULT line, then update GRUB:

   # update-grub

   Reboot the system for changes to take effect.

[IMAGE PLACEHOLDER: Terminal screenshot showing nvidia-smi output with driver version and nvidia_drm modeset parameter verification]

Disabling Wayland at GDM Level on Ubuntu 26.04

In certain edge cases, you may need to disable Wayland at the GDM login manager level. This is relevant when using specific remote desktop tools, legacy virtualization software, or hardware configurations that are fundamentally incompatible with Wayland. Keep in mind that disabling Wayland for GNOME on Ubuntu 26.04 will not provide an X11 GNOME session, as those packages are no longer available. Instead, the system will fall back to a basic session or require an alternative desktop environment with X11 support.

1. Edit the GDM configuration file:

   # nano /etc/gdm3/custom.conf

   Find the [daemon] section and uncomment or add:

   [daemon]
   WaylandEnable=false

2. Restart GDM: Apply the changes by restarting the display manager:

   # systemctl restart gdm3

   Alternatively, reboot the system.

3. Re-enable Wayland when ready: To enable Wayland again, set WaylandEnable=true in the same file or simply remove the line.

If your use case requires setting Wayland as default again after changes, simply revert the GDM configuration. Furthermore, if you are evaluating whether to switch from X11 to Wayland on a system with multiple desktop environments, this same GDM configuration controls which protocol is used.

Conclusion

Ubuntu 26.04 solidifies Wayland as the standard display server for the GNOME desktop by removing the X11 session option entirely. As a result, understanding how Wayland works, how XWayland maintains backward compatibility, and how to configure environment variables for native Wayland support is now essential knowledge for Ubuntu desktop users. Moreover, knowing how to troubleshoot screen sharing, fractional scaling, and NVIDIA driver issues ensures you can resolve the most common pain points. For users who previously relied on installing Wayland separately, Ubuntu 26.04 has simplified the experience by making it the default and only option for GNOME.

Frequently Asked Questions

1. Can I still use X11 with GNOME on Ubuntu 26.04? No. Ubuntu 26.04 has removed the X11 GNOME session packages. GNOME runs exclusively on Wayland. However, legacy X11 applications continue to work through the XWayland compatibility layer, which is installed by default. If you specifically need an X11 session, you can install an alternative desktop environment such as Xfce or KDE Plasma, which may still offer X11 options.
2. How do I fix screen sharing not working on Wayland? Screen sharing on Wayland requires PipeWire and the xdg-desktop-portal service. Verify both are running with systemctl --user status pipewire and systemctl --user status xdg-desktop-portal-gnome. Additionally, ensure your conferencing application supports Wayland screen capture. Most modern versions of Zoom, Teams, and Chromium-based browsers support this natively on Ubuntu 26.04.
3. Why do some applications look blurry on Wayland with fractional scaling? Applications running through XWayland (legacy X11 apps) are rendered at integer scaling and then resized by the Wayland compositor, which can cause blurriness. The solution is to use the native Wayland version of the application when available, or set appropriate environment variables such as ELECTRON_OZONE_PLATFORM_HINT=auto for Electron-based applications to force native Wayland rendering.
4. How do I know if an application is running on Wayland or XWayland? You can use the xlsclients command to list all applications running through XWayland. Alternatively, install x11-apps and run xeyes, which tracks your cursor only when it is over XWayland windows. GNOME’s Looking Glass inspector (Alt+F2, then type lg) also shows window types.
5. Do I need to configure anything special for NVIDIA GPUs on Wayland? NVIDIA GPUs require proprietary driver version 550 or later with nvidia-drm.modeset=1 enabled as a kernel parameter. Verify your driver version with nvidia-smi and check modesetting with cat /sys/module/nvidia_drm/parameters/modeset. Ubuntu 26.04 typically configures this automatically during driver installation, but manual verification is recommended after upgrades.
