Find Nested Key via Jackson Example

1. Introduction

JavaScript Object Notation (JSON) is a text-based format for storing and exchanging data. It’s commonly used to transfer data between a server and a web application. Working with JSON in Java often requires accessing nested keys. Jackson is an open-source Java library developed by FasterXML, LLC for JSON processing. In this example, I will demonstrate findvalue of a nested key via JsonNode’s findValue() and path() methods.

• abstract JsonNode findValue(String fieldName) – finding the first JSON Object field with the specified name in this node or its child nodes. It returns null if not found.
• abstract JsonNode path(String fieldName) – accessing the specified field of an object node by the field name. It returns a “missing node” instead of null if not found.

2. Setup

In this step, I will create a gradle project along with Jackson and Junit libraries.

build.gradle

/*
 * This file was generated by the Gradle 'init' task.
 *
 * This generated file contains a sample Java application project to get you started.
 * For more details on building Java & JVM projects, please refer to https://docs.gradle.org/8.8/userguide/building_java_projects.html in the Gradle documentation.
 */

plugins {
    // Apply the application plugin to add support for building a CLI application in Java.
    id 'application'
}

repositories {
    // Use Maven Central for resolving dependencies.
    mavenCentral()
}

dependencies {
    // Use JUnit Jupiter for testing.
    testImplementation libs.junit.jupiter

    //use jackson
    implementation 'com.fasterxml.jackson.core:jackson-core:2.18.0'
    implementation 'com.fasterxml.jackson.core:jackson-databind:2.18.0'

    testRuntimeOnly 'org.junit.platform:junit-platform-launcher'

    // This dependency is used by the application.
    implementation libs.guava
}

// Apply a specific Java toolchain to ease working on different environments.
java {
    toolchain {
        languageVersion = JavaLanguageVersion.of(17)
    }
}

application {
    // Define the main class for the application.
    mainClass = 'org.example.App'
}

tasks.named('test') {
    // Use JUnit Platform for unit tests.
    useJUnitPlatform()
}

3. FindValue Nested Key

In this step, I will create a FindNodeByValue.java that finds a nested node via the JsonNode.findValue method.

FindNodeByValue.java

package org.example;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;

public class FindNodeByValue {

    public JsonNode findNestedNode(final String sourceJsonString, final String... paths) {
        ObjectMapper ob = new ObjectMapper();

        boolean found = false;
        JsonNode foundNode ;
        int i = 0;

        try {
            JsonNode rootNode = ob.readTree(sourceJsonString);
            foundNode = rootNode.findValue(paths[0]);

            while (!found) {
                if (foundNode == null) {
                    throw new IllegalArgumentException("Not found " + paths[i]);
                } else {
                    if (foundNode.isContainerNode()) {
                        if( i + 1 >= paths.length){
                            break;
                        }
                        foundNode = foundNode.findValue(paths[i + 1]);
                    } else {
                        found = true;
                    }
                }
                i++;
            }

        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }
        return foundNode;
    }

}

• Line 9: this method will find the nested key based on the given paths.
• Line 18, 28: utilize the findValue method to find the field from JSON.
• Line 21: when the field is not found, findValue returns null.

4. Find Nested Node via Path

In this step, I will create a FindNodeByPath.java that finds a nested node via Jackson JsonNode.path method. Note: this class is very similar to the FindNodeByValue class created in step 3. The only difference is that the path method returns a “missing node” object while the findValue method returns null if not found.

FindNodeByPath.java

package org.example;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;

public class FindNodeByPath {

    public JsonNode findNestedNode(final String sourceJsonString, final String... paths) {
        ObjectMapper ob = new ObjectMapper();

        boolean found = false;
        JsonNode foundNode ;
        int i = 0;

        try {
            JsonNode rootNode = ob.readTree(sourceJsonString);
            foundNode = rootNode.path(paths[0]);
            while (!found) {
                if (foundNode.isMissingNode()) {
                    throw new IllegalArgumentException("Not found " + paths[i]);
                } else {
                    if (foundNode.isContainerNode()) {
                        if( i + 1 >= paths.length){
                            break;
                        }
                        foundNode = foundNode.path(paths[i + 1]);
                    } else {
                        found = true;
                    }
                }
                i++;
            }


        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }
        return foundNode;
    }

}

• Line 18, 27: utilize the path method to find the field.
• Line 20: when the field is not found, it returns JsonNode with isMissingNode as true.

5. Demo with Junit Tests

5.1 Test Data

In this step, I will create a TestData.java test that defines five testing JSON strings and they will be used in steps 5.2 and 5.3.

TestData.java

package org.example;

public class TestData {
    public static final String JSON_1 = "{\"root\":\"rootValue\"}";
    public static final String JSON_2 = "{\"root\":{\"ele2\":\"mary\"}}";
    public static final String JSON_3 = "{\"root\":{\"ele2\":{\"ele3\":\"zheng\"}}}";
    public static final String JSON_4 = "{\"root\":{\"ele2\":{\"ele3\":{\"ele4\":\"jcg\"}}}}";
    public static final String JSON_5 = "{\"root\":{\"ele2\":{\"test\":{\"ele2\":\"jcg\"}}}}";
}

Here is the pretty formatted JSON_1. The root field is not nested and it has a simple string value of "rootValue".

JSON_1

{"root":"rootValue"}

• It will be used in both steps 5.2 and 5.3 with the test_findNestedNode test.

Here is the pretty formatted JSON_2. Its root field is a nested key with a field name as ele2.

JSON_2

{
    "root": {
        "ele2": "mary"
    }
}

• Line 3: It will be used in both steps 5.2 and 5.3 with the test_findNestedNode_2 test.

Here is the pretty formatted JSON_3. It has three levels of depth for a nested key: ele3.

JSON_3

{
    "root": {
        "ele2": {
            "ele3": "zheng"
        }
    }
}

• Line 4: It will be used in both steps 5.2 and 5.3 with the test_findNestedNode_3 test.

Here is the pretty formatted JSON_4 which outlines the nested ele4. It will be used in both steps 5.2 and 5.3 with the test_findNestedNode test.

JSON_4

{
    "root": {
        "ele2": {
            "ele3": {
                "ele4": "jcg"
            }
        }
    }
}

• Line 5: It will be used in both steps 5.2 and 5.3 with the test_findNestedNode_4 test.

Here is the pretty formatted JSON_5 which shows the ele2 shows at two different levels.

JSON_5

{
    "root": {
        "ele2": {
            "test": {
                "ele2": "jcg"
            }
        }
    }
}

• Line 3, 5: It will be used in both steps 5.2 and 5.3 with the test_findNestedNode_5 test.

5.2 FindValue Nested Key Test

In this step, I will create a FindNodeByValueTest.java test that verifies finding a nested key via the findValue method with six tests to find the nested key at a various depth.

FindNoeByValueTest.java

package org.example;

import com.fasterxml.jackson.databind.JsonNode;
import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.*;

class FindNodeByValueTest {
    FindNodeByValue findNestedNode = new FindNodeByValue();


    @Test
    void test_findNestedNode() {

        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_1, "root");
        assertEquals("rootValue", firstElement.asText());
    }

    @Test
    void test_findNestedNod_2() {

        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_2, "root", "ele2");
        assertEquals("mary", firstElement.asText());
    }

    @Test
    void test_findNestedNod_3() {

        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_3, "root", "ele2", "ele3");
        assertEquals("zheng", firstElement.asText());
    }

    @Test
    void test_findNestedNod_4() {

        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_4, "root", "ele2", "ele3", "ele4");
        assertEquals("jcg", firstElement.asText());
    }

    @Test
    void test_notExist(){
        assertThrows(IllegalArgumentException.class, () ->
                findNestedNode.findNestedNode(TestData.JSON_4, "root", "bad"));
    }

    @Test
    void test_morefields(){
       JsonNode foundTest= findNestedNode.findNestedNode(TestData.JSON_5,"root", "ele2");
       assertTrue(foundTest.isContainerNode());
    }
}

• Line 49: both findValue and path methods find the first node with the matching field name.

5.3 Path Nested Key Test

In this step, I will create a FindNodeByPathTest.java test that verifies finding a nested key via the path method. Note: this class is very similar to the FindNodeByValueTest class created in step 5.2.

FindNodeByPathTest.java

package org.example;

import com.fasterxml.jackson.databind.JsonNode;
import org.junit.jupiter.api.Test;

import static org.junit.jupiter.api.Assertions.*;

class FindNodeByPathTest {

    FindNodeByPath findNestedNode = new FindNodeByPath();

    @Test
    void test_findNestedNode() {
        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_1, "root");
        assertEquals("rootValue", firstElement.asText());
    }

    @Test
    void test_findNestedNod_2() {
        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_2, "root", "ele2");
        assertEquals("mary", firstElement.asText());
    }

    @Test
    void test_findNestedNod_3() {
        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_3, "root", "ele2", "ele3");
        assertEquals("zheng", firstElement.asText());
    }

    @Test
    void test_findNestedNod_4() {
        JsonNode firstElement = findNestedNode.findNestedNode(TestData.JSON_4, "root", "ele2", "ele3", "ele4");
        assertEquals("jcg", firstElement.asText());
    }

    @Test
    void test_notExist(){
        assertThrows(IllegalArgumentException.class, () ->
        findNestedNode.findNestedNode(TestData.JSON_4, "root", "bad"));
    }

    @Test
    void test_morefields(){
        JsonNode foundTest= findNestedNode.findNestedNode(TestData.JSON_5,"root","ele2");
        assertTrue(foundTest.isContainerNode());
    }
}

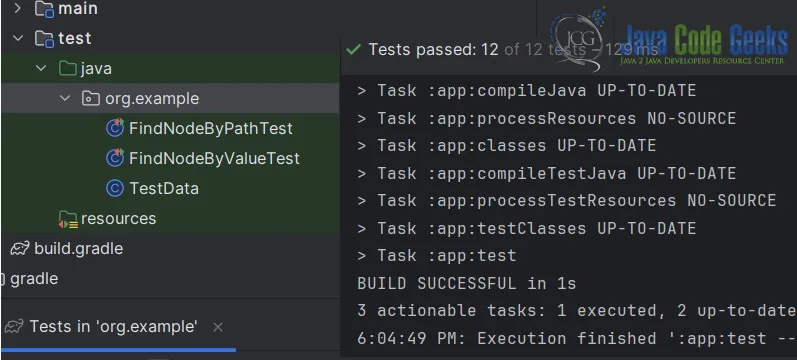

Run both Junit tests and capture the output here.

6. Conclusion

In this example, I created two classes to find a nested key from a JSON object utilizing JsonNode two methods: findValue() and path(). Both methods are very similar except handling of the not-found use case. The findValue method returns null while the path method returns a JsonNode with isMissingNode set to true.

7. Download

This was an example of a gradle project which included Jackson library to find a nested key in a JSON.
