Deserialize to a Map with Correct Type Example

1. Introduction

Deserialization is the process of converting data to Java objects. In this example, I will demonstrate how to deserialize JSON, XML, and byte array into Java Map<String, Object> and ensure that values in the map are converted with correct types via the following libraries

• com.fasterxml.jackson.databind.ObjectMapper: provides functionality for reading and writing JSON.
• com.fasterxml.jackson.dataformat.xml.XmlMapper: is a customized ObjectMapper that reads and writes XML.
• com.google.gson.Gson: facilitates the conversion between Java objects and JSON.
• org.json: is a lightweight tool for working with JSON in Java.
• jakarta.json: is a standardized Java JSON Processing API.

2. Setup

2.1 Build.gradle

In this step, I will create a Gradle project with GSON, jackson-dataformat-xml, org.json, jakarta.json, and Junit5 libraries.

build.gradle

plugins {
	id 'java'
	id 'org.springframework.boot' version '3.5.6'
	id 'io.spring.dependency-management' version '1.1.7'
}

group = 'org.jcg.zheng.demo'
version = '0.0.1-SNAPSHOT'
description = 'Demo project for deserializing to Map '

java {
	toolchain {
		languageVersion = JavaLanguageVersion.of(21)
	}
}

repositories {
	mavenCentral()
}

dependencies {

	implementation 'org.springframework.boot:spring-boot-starter-web'

	// https://mvnrepository.com/artifact/com.fasterxml.jackson.dataformat/jackson-dataformat-xml
    implementation("com.fasterxml.jackson.dataformat:jackson-dataformat-xml:2.19.1")

    // https://mvnrepository.com/artifact/com.google.code.gson/gson
	implementation("com.google.code.gson:gson:2.13.2")

	// https://mvnrepository.com/artifact/org.json/json
	implementation("org.json:json:20250517")

	// https://mvnrepository.com/artifact/org.glassfish/jakarta.json
	implementation("org.glassfish:jakarta.json:2.0.1")

	testImplementation 'org.springframework.boot:spring-boot-starter-test'
	testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
}

tasks.named('test') {
	useJUnitPlatform()
}

• Line 26: the XmlMapper referred in step 3.2 needs jackson-dataformat-xml.
• Line 29: the Gson referred in step 3.4 needs gson.
• Line 32: the org.json.JSONArray referred in step 3.5 needs org.json.
• Line 35: the jakarta.json.JsonArray referred in step 3.6 needs jakarta.json.

2.2 MapTypeConverter

In this step, I will create a MapTypeConverter that converts the value to its correct type. It will be used at DeserializeMapXmlMapperImpl defined at step 3.2.

MapTypeConverter

package org.jcg.zheng.demo.deserializetomap.service;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

public class MapTypeConverter {
	private static final String INT_REGEX = "-?\\d+";
	private static final String DECIMAL_REGEX = "-?\\d+\\.\\d+";
	private static final List<String> BOOLEAN_TEXTS = List.of("true", "false");

	public static Object coerceValue(Object value) {
		if (value instanceof String s) {
			if (s.matches(INT_REGEX)) {
				try {
					return Integer.parseInt(s);
				} catch (Exception e) {
					return Long.parseLong(s);
				}
			} else if (s.matches(DECIMAL_REGEX)) {
				return Double.parseDouble(s);
			} else if (BOOLEAN_TEXTS.contains(s.toLowerCase())) {
				return Boolean.parseBoolean(s);
			}
		} else if (value instanceof List items) {
			List<Object> coverted = new ArrayList<>();
			for (Object item : items) {
				coverted.add(coerceValue(item));
			}
		}
		return value;
	}

	public static Map<String, Object> convert(Map<String, Object> rawValue) {
		Map<String, Object> newMap = new HashMap<>();
		rawValue.forEach((k, v) -> newMap.put(k, coerceValue(v)));
		return newMap;
	}

}

• Line 13: customized logic to convert to the correct data type. The logic is based on the matches method with regular expression.
• Line 35: convert from the raw map to the correct typed map.

2.3 BaseTest

In this step, I will create a BaseTest that defines test XML, JSON Strings and common asserts for the deserialized mapobj.

BaseTest.java

package org.jcg.zheng.demo.deserializetomap.service;

import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertNull;
import static org.junit.jupiter.api.Assertions.assertTrue;

import java.util.List;
import java.util.Map;

public class BaseTest {

	protected DeserializeMapService testClass;

	protected Map<String, Object> mapObj;

	protected String mapXmlStr = """
			<HashMap>
			    <name>Mary</name>
			    <age>50</age>
			    <isValid>true</isValid>
			    <hourlyRate>8.45</hourlyRate>
			    <item>ele1</item>
			    <item>ele2</item>
			</HashMap>
						""";

	protected String mapJsonStr = """
			{
			  "textV": "hello",
			  "booleanV":false,
			  "intv": 1,
			  "doublev": 99.78,
			  "nullv":null,
			  "stringList":["ele1","ele2"],
			  "objMap": {
			    "textE": "Mary"
			  }
			}
									""";

	protected void assertJsonCommon() {
		assertEquals(7, mapObj.size());

		assertTrue(mapObj.get("textV") instanceof String);
		assertTrue(mapObj.get("booleanV") instanceof Boolean);
		assertTrue(mapObj.get("objMap") instanceof Map);
		assertTrue(mapObj.get("stringList") instanceof List);

		assertNull(mapObj.get("nullv"));
		assertEquals("hello", mapObj.get("textV"));
		assertEquals(Boolean.FALSE, mapObj.get("booleanV"));
	}

	protected void assertXml() {
		assertEquals("Mary", mapObj.get("name"));

		assertTrue(mapObj.get("item") instanceof List);
		assertTrue(mapObj.get("isValid") instanceof Boolean);
		assertTrue(mapObj.get("age") instanceof Integer);
		assertTrue(mapObj.get("hourlyRate") instanceof Double);
	}

}

• Line 12: the testClass instance will be initialized at each test class.
• Line 14: the mapObj that deserialized by the implementation class of DeserializeMapService.
• Line 16: the test XML includes whole number, decimal, text, Boolean, list of elements.
• Line 27: the test JSON includes number, decimal, text, Boolean, array, and nested object.
• Line 41: assert the mapObj from JSON has correct data types.
• Line 54: assert the mapObj from XML has correct data types.

3. Map with Correct Type

3.1 Map with Correct Type Interface

In this step, I will create a DeserializeMapService.java interface that has two methods:

• Map<String, Object> deserializeString(String mapString) – deserializes JSON or XML string into a Map <String, Object> with correct data types.
• default Map<String, Object> deserializeByteArray(byte[] mapBytes) { return deserializeString(new String(mapBytes, StandardCharsets.UTF_8)); }

DeserializeMapService.java

package org.jcg.zheng.demo.deserializetomap.service;

import java.nio.charset.StandardCharsets;
import java.util.Map;

public interface DeserializeMapService {

	Map<String, Object> deserializeString(String mapString);

	default Map<String, Object> deserializeByteArray(byte[] mapBytes) {
		return deserializeString(new String(mapBytes, StandardCharsets.UTF_8));
	}

}

• Line 11: the deserializeByteArray reuses deserializeString after converting byte[] to String.

3.2 XML String to Map with Correct Type via XmlMapper

In this step, I will create a DeserializeMapXmlMapperImpl class that implements DeserializeMapService interface defined at step 3.1 via com.fasterxml.jackson.dataformat.xml.XmlMapper. Because XML doesn’t have native number, boolean types, we have to create a customized XmlMapTypeConverter class to convert to the correct type when using XmlMapper.

DeserializeMapXmlMapperImpl.java

package org.jcg.zheng.demo.deserializetomap.service;

import java.util.Map;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.core.type.TypeReference;
import com.fasterxml.jackson.dataformat.xml.XmlMapper;

public class DeserializeMapXmlMapperImpl implements DeserializeMapService {

	private XmlMapper xmlMapper;
	private TypeReference<Map<String, Object>> mapTypeRef = new TypeReference<Map<String, Object>>() {
	};

	public DeserializeMapXmlMapperImpl(XmlMapper xmlMapper) {
		super();
		this.xmlMapper = xmlMapper;
	}

	@Override
	public Map<String, Object> deserializeString(String mapString) {
		Map<String, Object> mObj = null;
		try {
			mObj = xmlMapper.readValue(mapString, mapTypeRef);

			Map<String, Object> coerced = MapTypeConverter.convert(mObj);
			return coerced;
		} catch (JsonProcessingException e) {
			e.printStackTrace();
		}

		return mObj;
	}

}

• Line 12: defines mapTypeRef for Map<String,Object>.
• Line 21,24,26: implements deserializeString by calling xmlMapper.readValue to get the Map. But the Map's value is type of String as XML stores everything as String, calling MapTypeConverter created at step 2.2 to convert to the correct data type.

3.3 JSON String to Map with Correct Type via ObjectMapper

In this step, I will create a DeserializeMapObjectMapperImpl class that implements DeserializeMapService interface defined at step 3.1 via com.fasterxml.jackson.databind.ObjectMapper.

DeserializeMapObjectMapperImpl.java

package org.jcg.zheng.demo.deserializetomap.service;

import java.io.IOException;
import java.util.Map;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.core.type.TypeReference;
import com.fasterxml.jackson.databind.ObjectMapper;

public class DeserializeMapObjectMapperImpl implements DeserializeMapService {

	private ObjectMapper ob;
	private TypeReference<Map<String, Object>> mapTypeRef = new TypeReference<Map<String, Object>>() {
	};

	public DeserializeMapObjectMapperImpl(ObjectMapper ob) {
		super();
		this.ob = ob;
	}

	@Override
	public Map<String, Object> deserializeString(String mapString) {
		Map<String, Object> ret = null;
		try {
			ret = ob.readValue(mapString, mapTypeRef);
		} catch (JsonProcessingException e) {
			e.printStackTrace();
		}
		return ret;
	}

	@Override
	public Map<String, Object> deserializeByteArray(byte[] mapBytes) {
		Map<String, Object> ret = null;
		try {
			ret = ob.readValue(mapBytes, mapTypeRef);
		} catch (IOException e) {
			e.printStackTrace();
		}
		return ret;
	}

}

• Line 13: mapTypeRef as Map<String,Object>.
• Line 22: no customized logic is needed when using the ObjectMapper.readValue method.
• Line 33: override the default deserializeByteArray as ObjectMapper can deserialize byte[] directly.

3.4 JSON String to Map with Correct Type via Gson

In this step, I will create a DeserializeMapGsonImpl class that implements DeserializeMapService interface defined at step 3.1 via com.google.gson.Gson.

DeserializeMapGsonImpl.java

package org.jcg.zheng.demo.deserializetomap.service;

import java.lang.reflect.Type;
import java.util.Map;

import com.google.gson.Gson;
import com.google.gson.reflect.TypeToken;

public class DeserializeMapGsonImpl implements DeserializeMapService {

	private Gson gson;

	private Type mapType = new TypeToken<Map<String, Object>>() {
	}.getType();

	public DeserializeMapGsonImpl(Gson gson) {
		super();
		this.gson = gson;
	}

	@Override
	public Map<String, Object> deserializeString(String mapString) {
		return gson.fromJson(mapString, mapType);
	}

}

• Line 13: mapType defines for Map<String, Object>
• Line 22: no customized logic is needed when using Gson.fromJson method.

3.5 JSON String to Map with Correct Type via org.gson

In this step, I will create a DeserializeMapOrgJsonImpl class that implements DeserializeMapService interface defined at step 3.1 via org.json.JSONArray & org.json.JSONObject.

DeserializeMapOrgJsonImpl.java

package org.jcg.zheng.demo.deserializetomap.service;

import java.util.HashMap;
import java.util.Iterator;
import java.util.Map;

import org.json.JSONArray;
import org.json.JSONObject;

public class DeserializeMapOrgJsonImpl implements DeserializeMapService {

	@Override
	public Map<String, Object> deserializeString(String mapString) {
		return convert(new JSONObject(mapString));
	}

	private Map<String, Object> convert(final JSONObject jsonObj) {
		Map<String, Object> ret = new HashMap<>();
		Iterator<String> keys = jsonObj.keys();
		while (keys.hasNext()) {
			String k = keys.next();
			Object value = jsonObj.get(k);
			if (value instanceof JSONObject) {
				value = convert((JSONObject) value);
			} else if (value instanceof JSONArray) {
				value = ((JSONArray) value).toList();
			} else if (value.equals(JSONObject.NULL)) {
				value = null;
			}

			ret.put(k, value);
		}

		return ret;
	}

}

• Line 13: deserializeString is implemented.
• Line 23,25,27: customized logic is added for JSONObject, JSONArray, and JSONObject.NULL.

3.6 JSON String to Map with Correct Type via JSON-API

In this step, I will create a DeserializeMapJSONPImpl class that implements DeserializeMapService interface defined at step 3.1 via jakarta.json.

DeserializeMapJSONPImpl.java

package org.jcg.zheng.demo.deserializetomap.service;

import java.io.StringReader;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import jakarta.json.Json;
import jakarta.json.JsonArray;
import jakarta.json.JsonObject;
import jakarta.json.JsonReader;
import jakarta.json.JsonValue;

public class DeserializeMapJSONPImpl implements DeserializeMapService {

	@Override
	public Map<String, Object> deserializeString(String mapString) {
		try (JsonReader reader = Json.createReader(new StringReader(mapString))) {
			JsonObject jsonObj = reader.readObject();
			return toMap(jsonObj);
		}
	}

	private static Object convert(JsonValue value) {
		switch (value.getValueType()) {
		case STRING:
			return jsonObjString(value);
		case NUMBER:
			return jsonObjNumber(value);
		case TRUE:
			return Boolean.TRUE;
		case FALSE:
			return Boolean.FALSE;
		case OBJECT:
			return toMap((JsonObject) value);
		case ARRAY:
			return toList((JsonArray) value);
		default:
			return null;
		}
	}

	private static Map<String, Object> toMap(JsonObject value) {
		Map<String, Object> ret = new HashMap<>();
		for (String key : value.keySet()) {
			JsonValue v = value.get(key);
			ret.put(key, convert(v));
		}
		return ret;
	}

	private static List<Object> toList(JsonArray jsonArray) {
		List<Object> items = new ArrayList<>();
		for (JsonValue v : jsonArray) {
			items.add(convert(v));
		}
		return items;
	}

	private static String jsonObjString(JsonValue val) {
		return ((jakarta.json.JsonString) val).getString();
	}

	private static Number jsonObjNumber(JsonValue val) {
		return ((jakarta.json.JsonNumber) val).numberValue();
	}

}

• Line 18: deserializeString is implemented.
• Line 25: customized logic is added to convert JsonValue to the correct type.

4. Map with Correct Type Tests

In this step, I will create five Junit test classes that extend from BaseTest and set up the testClass variable, and test deserializing from String and byte[] into Map objects with correct data types.

4.1 Test Deserialize to Map via XmlMapper

In this step, I will create a DeserializeMapXmlMapperImplTest that verifies the XML string is deserialized to a Map object with correct data types.

DeserializeMapXmlMapperImplTest.java

package org.jcg.zheng.demo.deserializetomap.service;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;

import com.fasterxml.jackson.dataformat.xml.XmlMapper;

class DeserializeMapXmlMapperImplTest extends BaseTest {

	private XmlMapper xmapper = new XmlMapper();

	@BeforeEach
	public void setup() {
		testClass = new DeserializeMapXmlMapperImpl(xmapper);
	}

	@Test
	void test_deserializeString() {
		mapObj = testClass.deserializeString(mapXmlStr);
		assertXml();
	}

	@Test
	void test_deserializeByteArray() {
		mapObj = testClass.deserializeByteArray(mapXmlStr.getBytes());
		assertXml();
	}

}

• Line 10: XmlMapper is created via new XmlMapper().
• Line 14: testClass is created via constructor for each test method.
• Line 18: the deserializeString is tested with XML.
• Line 24: the deserializeByteArray is tested with byte[] formed from XML.

4.2 Test Deserialize to Map via ObjectMapper

In this step, I will create a DeserializeMapObjectMapperImplTest that verifies the JSON string is deserialized to a Map object with correct data type.

DeserializeMapXmlMapperImplTest.java

package org.jcg.zheng.demo.deserializetomap.service;

import static org.junit.jupiter.api.Assertions.assertTrue;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;

import com.fasterxml.jackson.databind.ObjectMapper;

class DeserializeMapObjectMapperImplTest extends BaseTest {

	private ObjectMapper ob = new ObjectMapper();

	@BeforeEach
	public void setup() {
		testClass = new DeserializeMapObjectMapperImpl(ob);
	}

	@Test
	void test_deserializeString() {
		mapObj = testClass.deserializeString(mapJsonStr);

		assertJsonCommon();
		assertTrue(mapObj.get("intv") instanceof Integer);
		assertTrue(mapObj.get("doublev") instanceof Double);
	}

	@Test
	void test_deserializeByteArray() {
		mapObj = testClass.deserializeByteArray(mapJsonStr.getBytes());

		assertJsonCommon();
		assertTrue(mapObj.get("intv") instanceof Integer);
		assertTrue(mapObj.get("doublev") instanceof Double);
	}
}

• Line 12: ObjectMapper is created via new ObjectMapper().
• Line 15: testClass is created via constructor for each test method.
• Line 24,33: the whole number is mapped to the Integer type.
• Line 25,34: the decimal is mapped to the Double type.

4.3 Test Deserialize to Map via Gson

In this step, I will create a DeserializeMapGsonImplTest that verifies the JSON string is deserialized to a Map object with correct data type.

DeserializeMapGsonImplTest.java

package org.jcg.zheng.demo.deserializetomap.service;

import static org.junit.jupiter.api.Assertions.assertTrue;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;

import com.google.gson.Gson;

class DeserializeMapGsonImplTest extends BaseTest {

	private Gson gson = new Gson();

	@BeforeEach
	public void setup() {
		testClass = new DeserializeMapGsonImpl(gson);
	}

	@Test
	void test_deserializeString() {
		mapObj = testClass.deserializeString(mapJsonStr);

		assertJsonCommon();

		assertTrue(mapObj.get("intv") instanceof Double); // different from ObjectMapper's Integer
		assertTrue(mapObj.get("doublev") instanceof Double);
	}

	@Test
	void test_deserializeByteArray() {
		mapObj = testClass.deserializeByteArray(mapJsonStr.getBytes());

		assertJsonCommon();

		assertTrue(mapObj.get("intv") instanceof Double); // different from ObjectMapper's Integer
		assertTrue(mapObj.get("doublev") instanceof Double);
	}

}

• Line 12: Gson is created via new Gson().
• Line 16: testClass is created via constructor for each test method.
• Line 25,26,35,36: Gson maps to Double regardless of whole number or not.

4.4 Test Deserialize to Map via Org.json

In this step, I will create a DeserializeMapOrgJsonImplTest that verifies the JSON string is deserialized to a Map object with correct data type.

DeserializeMapOrgJsonImplTest.java

package org.jcg.zheng.demo.deserializetomap.service;

import static org.junit.jupiter.api.Assertions.assertTrue;

import java.math.BigDecimal;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;

class DeserializeMapOrgJsonImplTest extends BaseTest {

	@BeforeEach
	public void setup() {
		testClass = new DeserializeMapOrgJsonImpl();
	}

	@Test
	void test_deserializeString() {
		mapObj = testClass.deserializeString(mapJsonStr);

		assertJsonCommon();
		assertTrue(mapObj.get("intv") instanceof Integer);
		assertTrue(mapObj.get("doublev") instanceof BigDecimal);
	}

	@Test
	void test_deserializeByteArray() {
		mapObj = testClass.deserializeByteArray(mapJsonStr.getBytes());

		assertJsonCommon();
		assertTrue(mapObj.get("intv") instanceof Integer);
		assertTrue(mapObj.get("doublev") instanceof BigDecimal);
	}

}

• Line 22,31: map the whole number to the Integer type
• Line 23,32: map the decimal to the BigDecimal type.

4.5 Test Deserialize to Map via JSON-API

In this step, I will create a DeserializeMapJSONPImplTest that verifies the JSON string is deserialized to a Map object with correct data type.

DeserializeMapJSONPImplTest.java

package org.jcg.zheng.demo.deserializetomap.service;

import static org.junit.jupiter.api.Assertions.assertTrue;

import java.math.BigDecimal;

import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;

class DeserializeMapJSONPImplTest extends BaseTest {

	@BeforeEach
	public void setup() {
		testClass = new DeserializeMapJSONPImpl();
	}

	@Test
	void test_deserializeString() {
		mapObj = testClass.deserializeString(mapJsonStr);

		assertJsonCommon();

		assertTrue(mapObj.get("intv") instanceof Integer);
		assertTrue(mapObj.get("doublev") instanceof BigDecimal);
	}

	@Test
	void test_deserializeByteArray() {
		mapObj = testClass.deserializeByteArray(mapJsonStr.getBytes());

		assertJsonCommon();
		assertTrue(mapObj.get("intv") instanceof Integer);
		assertTrue(mapObj.get("doublev") instanceof BigDecimal);
	}

}

• Line 14: testClass is created via constructor for each test method.
• Line 23,32: map the whole number to the Integer type
• Line 24,33: map the decimal to the BigDecimal type.

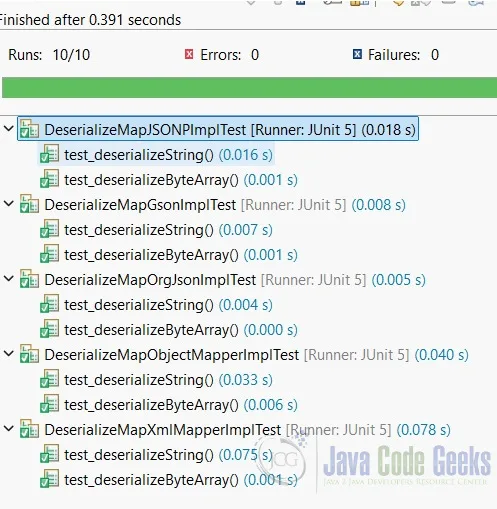

5. Test Results

In this step, I will run the Junit tests and capture the results here.

6. Conclusion

In this example, I defined the DeserializeMapService interface that deserializes both String and byte[] to Map<String, Object>. I also created five implementations via ObjectMapper, XmlMapper, Gson, org.json, and JSON API libraries. Both ObjectMapper and Gson deserialize to a Map with correct data types without any customized logic for whole or decimal numbers, Boolean, String, List, and nested objects. Both JSON-P and org.json require customized logic to convert to the correct data type. Here is the summary table.

• for whole number, Gson maps to Double, others map to Integer.
• for decimal, ObjectMapper, XmlMapper, and Gson map to Double, JSON-P and org.json map to BigDecimal.

7. Download

This was an example of a Gradle project that deserialized XML, JSON, and byte[] into Map<String, Object> objects with correct data types.

Do you want to know how to develop your skillset to become a Java Rockstar?

Subscribe to our newsletter to start Rocking right now!

To get you started we give you our best selling eBooks for FREE!

1. JPA Mini Book

2. JVM Troubleshooting Guide

3. JUnit Tutorial for Unit Testing

4. Java Annotations Tutorial

5. Java Interview Questions

6. Spring Interview Questions

7. Android UI Design

and many more ....

I agree to the Terms and Privacy Policy

Sign up

Thank you!

We will contact you soon.
