Custom Field Name with @JsonProperty

1. Introduction

Custom field name with @JsonProperty is very useful when mapping Java fields to JavaScript Object Notation (JSON) properties and vice versa. JSON is commonly used in web applications to transmit data and the clients and servers can be written in different programming languages with different naming conventions. For example, JSON adapts the “snake_case” for the property name while Java uses the “camelCase” format for the field name. The @JsonProperty annotation from the Jackson library maps Java fields to JSON properties that meet both naming conventions. In this example, I will demonstrate custom field name with @JsonProperty annotation usage from the Jackson library.

2. Setup

In this step, I will create a Maven project which depends on Jackson, Junit, and Lombok. The Lombok is included to reduce the boilerplate code.

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>org.zheng.demo</groupId>
	<artifactId>jackson-jsonproperty</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<dependencies>

		<!--
		https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-databind</artifactId>
			<version>2.17.1</version>
		</dependency>

		<!--
		https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-annotations -->
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-annotations</artifactId>
			<version>2.17.1</version>
		</dependency>

		<dependency>
			<groupId>org.junit.jupiter</groupId>
			<artifactId>junit-jupiter-api</artifactId>
			<version>5.10.2</version>
			<scope>test</scope>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.32</version>
			<scope>provided</scope>
		</dependency>

	</dependencies>
</project>

3. Custom Field Name with @JsonProperty

In this step, I will create three POJO classes which annotate a custom field name with jsonproperty annotation at the field, getter, and constructor positions.

• Customer.java: @JsonProperty is placed at the dataType field.
• Order.java: @JsonProperty is placed at the getName() method.
• Person.java @JsonProperty is placed at the Person constructor.

3.1. Custom Field Name with @JsonProperty at Field

In this step, I will create a Customer.java class which annotates the @JsonProperty in the dataType field and maps the dataType field to JSON type property. Note: cannot name the field name as type directly as it is a reserved keyword in Java.

Customer.java

package org.zheng.demo.data;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.List;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonProperty;

import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.NonNull;
import lombok.RequiredArgsConstructor;

@Data
@NoArgsConstructor
@RequiredArgsConstructor
@JsonIgnoreProperties(ignoreUnknown = true)
public class Customer implements Serializable {
	private static final long serialVersionUID = -1319171342148919329L;

	@JsonProperty("type")
	private String dataType;

	@NonNull
	private String email;

	private int id;

	private List<Order> orders;

	private Person person;

	public void addOrder(Order order) {
		if (this.orders == null) {
			this.orders = new ArrayList<>();
		}
		this.orders.add(order);
	}

}

• Line 22: maps the Java dataType field to the JSON type property.
• Line 25: marks the email field as @NonNull value.

3.2 Custom Field Name with @JsonProperty at Getter

In this step, I will create an Order.java class which annotates the @JsonProperty at the getProductName method. The JSON property “product_name” maps to the Java “productName” field.

Order.java

package org.zheng.demo.data;

import java.util.Objects;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonProperty;

@JsonIgnoreProperties(ignoreUnknown = true)
public class Order {

	private String productName;

	private int quantity;

	public Order() {
		super();
	}

	public Order(String productName, int quantity) {
		super();
		this.productName = productName;
		this.quantity = quantity;
	}

	@Override
	public boolean equals(Object obj) {
		if (this == obj)
			return true;
		if (obj == null)
			return false;
		if (getClass() != obj.getClass())
			return false;
		Order other = (Order) obj;
		return Objects.equals(productName, other.productName) && quantity == other.quantity;
	}

	@JsonProperty("product_name")
	public String getProductName() {
		return productName;
	}

	public int getQuantity() {
		return quantity;
	}

	@Override
	public int hashCode() {
		return Objects.hash(productName, quantity);
	}

	public void setProductName(String productName) {
		this.productName = productName;
	}

	public void setQuantity(int quantity) {
		this.quantity = quantity;
	}

}

• Line 37: maps the Java “productName” field to “product_name” JSON property.

3.3 Custom Field Name with @JsonProperty at Constructor

In this step, I will create a Person.java class that annotates the @JsonProperty at the Person constructor. It also marks the product_name as required.

Person.java

package org.zheng.demo.data;

import com.fasterxml.jackson.annotation.JsonCreator;
import com.fasterxml.jackson.annotation.JsonProperty;

import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@NoArgsConstructor
public class Person {
	private int age;
    @JsonProperty("person_name")
	private String name;

	@JsonCreator
	public Person(@JsonProperty(value = "person_name", required = true) String name, @JsonProperty("age") int age) {
		this.name = name;
		this.age = age;
	}

}

• Line 13: annotates the field to “person_name“.
• Line 16: marks the constructor used for the deserialization process.
• Line 17: maps the JSON person_name property to Java name field and marks it as a required field.

4. Test Person

In this step, I will create a Junit TestPerson.java which has the following three tests:

• test_happy_path – it serialized and deserialized data as expected.
• test_required_throw_exception_if_not_there – when the required person_name property is missing, then throws MismatchedInputException.
• test_required_with_null_is_ok – when the required person_name property has a null value, then it maps to null. Note: the required=true is different from @NonNull annotation.

TestPerson.java

package org.zheng.demo;

import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertNull;
import static org.junit.jupiter.api.Assertions.assertThrows;
import static org.junit.jupiter.api.Assertions.assertTrue;

import org.junit.jupiter.api.Test;
import org.zheng.demo.data.Person;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.exc.MismatchedInputException;

class TestPerson {

	private ObjectMapper ob = new ObjectMapper();

	@Test
	void test_happy_path() {
		// name and age have value
		String json = "{\"person_name\":\"John Doe\",\"age\":30}";
		try {
			Person pers = ob.readValue(json, Person.class);
			assertEquals("John Doe", pers.getName());
			assertEquals(30, pers.getAge());
		} catch (JsonProcessingException e) {
			e.printStackTrace();
		}

	}

	@Test
	void test_required_throw_exception_if_not_there() {
		// name is not there,
		String jsonWOName = "{\"name1\":\"John Doe\",\"age\":30}";
		MismatchedInputException expectedException = assertThrows(MismatchedInputException.class, () -> ob.readValue(jsonWOName, Person.class));
		assertTrue(expectedException.getMessage().contains("Missing required creator property 'person_name'") );

	}

	@Test
	void test_required_with_null_is_ok() {
		// has name but the value is null
		String jsonNullName = "{\"person_name\":null,\"age\":30}";
		try {
			Person pers2 = ob.readValue(jsonNullName, Person.class);
			assertNull(pers2.getName());
			assertEquals(30, pers2.getAge());
		} catch (JsonProcessingException e) {
			e.printStackTrace();
		}
	}

}

• Line 22: the person_name maps to a non-null value.
• line 36: throw an exception if JSON does not have required person_name.
• line 45: the person_name maps a null value.

5. Test Order

5.1 Order.json

In this step, I will create an Order.json file and will be used in step 5.2.

Order.json

 {  "quantity" : 10,
    "product_name" : "test"
 }

• the product_name is mapped to productName.

5.2 TestOrder.java

In this step, I will create a Junit TestOrder.java which has the following two tests:

• test_ignore_unknown– the unknown JSON properties are ignored.
• test_JsonProperty_getter_happypath – JSON properties are mapped to POJO fields as expected with the @JsonProperty set at the getName method.

TestOrder.java

package org.zheng.demo;

import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertNull;

import java.io.File;
import java.io.IOException;

import org.junit.jupiter.api.Test;
import org.zheng.demo.data.Order;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;

class TestOrder {

	private ObjectMapper ob = new ObjectMapper();

	@Test
	void test_ignore_unknown() {
		// name and age have value
		String json = "{\"productName\":\"PC\",\"quantity\":3}";
		try {
			Order order = ob.readValue(json, Order.class);
			assertNull(order.getProductName());
			assertEquals(3, order.getQuantity());
		} catch (JsonProcessingException e) {
			e.printStackTrace();
		}
	}

	@Test
	void test_JsonProperty_getter_happypath() {
		File file = new File("src/test/resources/order.json");

		try {
			Order order = ob.readValue(file, Order.class);
			assertEquals("test", order.getProductName());
			assertEquals(10, order.getQuantity());
		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}

}

• Line 22: the JSON has “productName” which is unknown since @JsonProperty maps to “product_name“.
• Line 25: the deserialized order object has a null value in the productName field.

6. Test Customer

In this step, I will create a Junit TestCustomer.java which has the following seven tests:

• test_customer_full_happyPath – read the customer_full.json and map to Java POJO as expected.
• test_customer_no_email_throw_JsonMappingException – throw JsonMappingException when @NonNull email is not there.
• test_customer_no_person_is_ok – although the person class requires a person_name, but the customer class does not require a person, so a customer‘s person is mapped to null.
• test_customer_null_email_throw_JsonMappingException – because the email field is defined as non-null, so an exception is thrown when the ob.readValue() method is called.
• test_customer_person_no_name_throw_MismatchedInputException– When a customer JSON contains a person to the customer, but person_name is missing, then an exception is thrown as the person_name is required.
• test_customer_wo_email_personName_throws_MismatchedInputException – when non-null email is missing and required person_name is missing, then missing person_name exception is thrown.
• test_JsonProperty_field – verify that the @email field annotated at field level works as expected.

TestCustomer.java

package org.zheng.demo;

import static org.junit.jupiter.api.Assertions.assertEquals;
import static org.junit.jupiter.api.Assertions.assertNull;
import static org.junit.jupiter.api.Assertions.assertThrows;
import static org.junit.jupiter.api.Assertions.assertTrue;

import java.io.File;
import java.io.IOException;

import org.junit.jupiter.api.Test;
import org.zheng.demo.data.Customer;
import org.zheng.demo.data.Order;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.JsonMappingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.exc.MismatchedInputException;

class TestCustomer {

	private ObjectMapper ob = new ObjectMapper();

	@Test
	void test_customer_full_happyPath() {
		File file = new File("src/test/resources/customer_full.json");

		try {
			Customer readCust = ob.readValue(file, Customer.class);
			assertEquals("Mary", readCust.getPerson().getName());
			assertEquals(50, readCust.getPerson().getAge());
			assertEquals("test@test.com", readCust.getEmail());
			assertEquals("major", readCust.getDataType());
			assertEquals(2, readCust.getId());
			assertEquals(2, readCust.getOrders().size());
		} catch (JsonProcessingException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}
	}

	@Test
	void test_customer_no_email_throw_JsonMappingException() {
		File file = new File("src/test/resources/customer_no_email.json");

		JsonMappingException expectedException = assertThrows(JsonMappingException.class, () -> {
			ob.readValue(file, Customer.class);
		});

		assertTrue(expectedException.getMessage().contains("email is marked non-null but is null"));

	}

	@Test
	void test_customer_no_person_is_ok() {
		File file = new File("src/test/resources/customer_no_person.json");

		try {
			Customer cust = ob.readValue(file, Customer.class);
			assertNull(cust.getPerson());
		} catch (IOException e) {
			e.printStackTrace();
		}
	}

	@Test
	void test_customer_null_email_throw_JsonMappingException() {
		File file = new File("src/test/resources/customer_null_email.json");

		JsonMappingException expectedException = assertThrows(JsonMappingException.class, () -> {
			ob.readValue(file, Customer.class);
		});

		assertTrue(expectedException.getMessage().contains("email is marked non-null but is null"));

	}

	@Test
	void test_customer_person_no_name_throw_MismatchedInputException() {
		File file = new File("src/test/resources/customer_person_no_name.json");
		MismatchedInputException expectedException = assertThrows(MismatchedInputException.class,
				() -> ob.readValue(file, Customer.class));
		assertTrue(expectedException.getMessage().contains("Missing required creator property 'person_name' "));

	}

	@Test
	void test_customer_wo_email_personName_throws_MismatchedInputException() {
		File file = new File("src/test/resources/customer_no_email_no_personName.json");

		MismatchedInputException expectedException = assertThrows(MismatchedInputException.class,
				() -> ob.readValue(file, Customer.class));

		assertTrue(expectedException.getMessage().contains("Missing required creator property 'person_name' (index 0)"));

	}

	@Test
	void test_JsonProperty_field() {
		Customer customer = new Customer("test@test.com");
		customer.setDataType("major");
		customer.setId(2);

		Order order = new Order("test", 10);
		customer.addOrder(order);
		Order order2 = new Order("PS", 20);
		customer.addOrder(order2);

		try {
			String jsonStr = ob.writerWithDefaultPrettyPrinter().writeValueAsString(customer);
			System.out.println(jsonStr);

			Customer readCust = ob.readValue(jsonStr, Customer.class);

			assertTrue(customer.equals(readCust));
			assertEquals("major", readCust.getDataType());
			assertEquals("test@test.com", readCust.getEmail());
			assertEquals(2, readCust.getId());
			assertEquals(2, readCust.getOrders().size());
			assertEquals("test", readCust.getOrders().get(0).getProductName());
			assertEquals(10, readCust.getOrders().get(0).getQuantity());
		} catch (JsonProcessingException e) {
			e.printStackTrace();
		}
	}

}

• Line 26: see customer_full.json at step 6.1.
• Line 45: see customer_no_email.json at step 6.2.
• Line 57: see customer_no_person.json at step 6.4.
• Line 69: see customer_null_email.json at step 6.5.
• Line 81: see customer_person_no_name.json at step 6.6.
• Line 90: see customer_no_email_no_personName.json at step 6.3.

6.1 customer_full.json

In this step, I will create a customer_full.json file which contains all the necessary data properties. The file is used at the test_customer_full_happyPath method.

customer_full.json

{
  "id" : 2,
  "person" : {
  	"person_name":"Mary",
  	"age":50},
  "orders" : [ {
    "quantity" : 10,
    "product_name" : "test"
  }, {
    "quantity" : 20,
    "product_name" : "PS"
  } ],
  "type" : "major",
  "email" : "test@test.com"
}

• Line 4: the person_name property maps to Person.name.
• Line 8,11: the product_name property maps to Order.productName.
• Line 13: the type property maps to Customer.dataType.

6.2 customer_no_email.json

In this step, I will create a customer_no_email.json file that contains a customer JSON without the required email property. It’s used at test_customer_no_email_throw_JsonMappingException.

customer_no_email.json

{
  "id" : 2,
  "person" : null,
  "orders" : [ {
    "quantity" : 10,
    "product_name" : "test"
  }, {
    "quantity" : 20,
    "product_name" : "PS"
  } ],
  "type" : "major",
  "email" : null
}

• Line 12: when the email property is null, it will throw a JsonMappingException as it is @NonNull at step 3.1.

6.3 customer_no_email_no_personName.json

In this step, I will create a customer_no_email_no_personName.json file that contains a customer JSON without the required email property and person_name.

customer_no_email_no_personName.json

{
  "id" : 2,
  "person" : {
  	"name":"Mary",
  	"age":50},
  "orders" : [ {
    "quantity" : 10,
    "product_name" : "test"
  }, {
    "quantity" : 20,
    "product_name" : "PS"
  } ],
  "type" : "major"
}

• Line 4: the perons.name should be person_name based on the @JsonProperty at step 3.3.

6.4 customer_no_person.json

In this step, I will create a customer_no_person.json file that contains a customer JSON without a person.

customer_no_person.json

{
  "id" : 2,
  "orders" : [ {
    "quantity" : 10,
    "product_name" : "test"
  }, {
    "quantity" : 20,
    "product_name" : "PS"
  } ],
  "type" : "major",
  "email" : "test@test.com"
}

• It should map to a customer object without any issue as seen in test_customer_no_person_is_ok.

6.5 customer_null_email.json

In this step, I will create a customer_null_email.json file that contains a custom JSON with null email property.

customer_null_email.json

{
  "id" : 2,
  "person" : null,
  "orders" : [ {
    "quantity" : 10,
    "product_name" : "test"
  }, {
    "quantity" : 20,
    "product_name" : "PS"
  } ],
  "type" : "major",
  "email" : null
}

• Line 12: it throws a JsonMappingException as the @NonNull email is null.

6.6 customer_person_no_name.json

In this step, I will create a customer_person_no_name.json file that contains a JSON for the customer without the person’s name property.

customer_person_no_name.json

{
    "id": 2,
    "person": {
        "name": "test",
        "age": 30
    },
    "orders": [
        {
            "quantity": 10,
            "product_name": "test"
        },
        {
            "quantity": 20,
            "product_name": "PS"
        }
    ],
    "type": "major",
    "email": "test@test.com"
}

• Line 4: it throws MismatchedInputException as the Person's name should be person_name as defined at step 3.3.

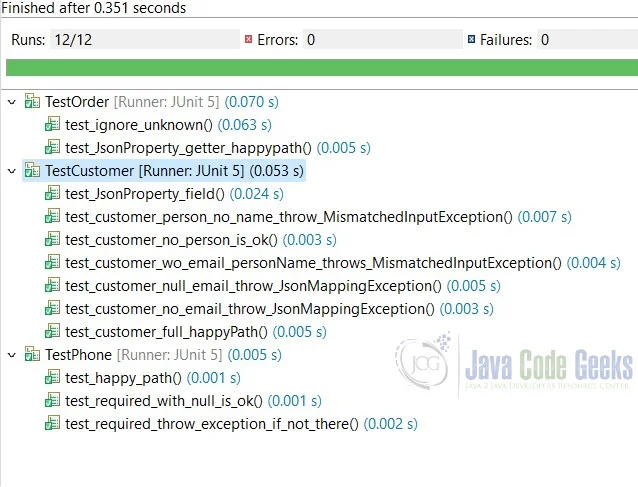

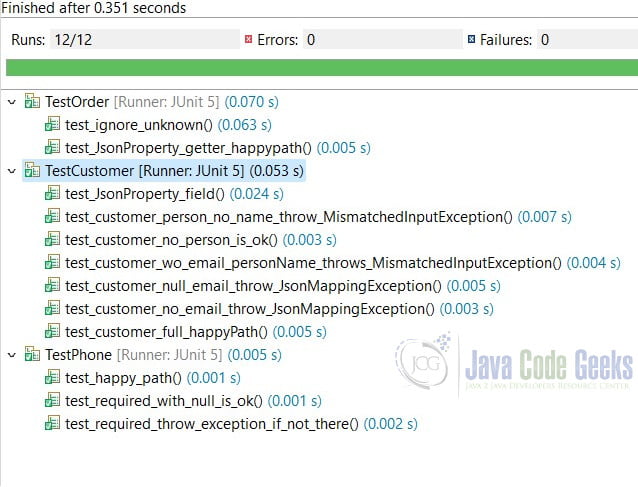

Run the Junit tests and all passed.

7. Conclusion

As you see in this example, I demonstrated how to serialize and deserialize via Jackson custom field name with @JsonProperty annotation. We can annotate Java POJO fields with the @JsonProperty annotation at the field, getter, or constructor to map the Java fields to JSON properties.

Please note that there are two Jackson library versions: version 2 is provided by fasterxml and version 1 is provided by codehaus. Make sure that @JsonProperty is imported from the correct package if the project contains both versions of Jackson libraries.

8. Download

This was an example of a Maven project which demonstrated how to customize field name with the @JsonpPoperty annotation.

Do you want to know how to develop your skillset to become a Java Rockstar?

Subscribe to our newsletter to start Rocking right now!

To get you started we give you our best selling eBooks for FREE!

1. JPA Mini Book

2. JVM Troubleshooting Guide

3. JUnit Tutorial for Unit Testing

4. Java Annotations Tutorial

5. Java Interview Questions

6. Spring Interview Questions

7. Android UI Design

and many more ....

I agree to the Terms and Privacy Policy

Sign up

Thank you!

We will contact you soon.
