Windows Security Fundamentals: Hands-On Lab

In this we introduces you to the core components of the Windows OS from a hacker’s perspective. You’ll explore how attackers abuse system features like the Windows Registry, services, file system permissions, and event logs to gain unauthorized access, maintain persistence, or cover their tracks.

Through this hands-on labs, you’ll learn:

How to identify and modify startup persistence mechanisms
How to manage and analyze user privileges and file permissions
How to investigate activities using Event Viewer logs
How attackers use fake services to hide malicious actions

Prerequisites for this lab

A Windows Operating System VM
Basic Windows OS Familiarity

1. Windows Registry – Startup Persistence (regedit)

Learn how attackers use the registry to auto-launch programs at startup.

Press Win + R, type regedit, hit Enter.

Navigate to:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Run

Right-click in the right panel → New > String Value

regedit_run_new — Add a new string value

Name it: TestStartup
Double-click it → set Value data to:
```
calc.exe
```

regedit_set_calc — Set value data as calc.exe

Restart or log off and log back in — Calculator will open automatically.

Practical Application - Malware can use this method to auto-run every time the user logs in.

2. File System Permissions – NTFS Access Control

Understand file/folder permission control using GUI.

Go to Desktop → Right-click → New > Folder → name it TestFolder
Right-click TestFolder → Properties > Security tab
Click Edit > Add → type your username → click OK.

NTFS_Demo_add — Enter your username and press "OK"

Select your username → Deny “Modify” permission

NTFS_Demo_modify — Change Permissions for User "Demo"

Click Apply, then try deleting the folder or creating a new one — it will fail.

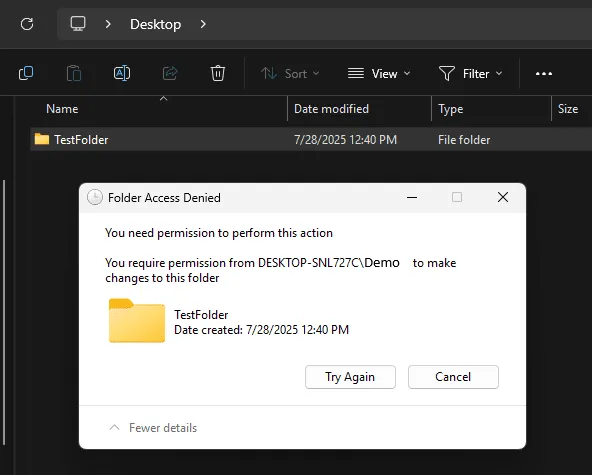

NTFS_permission_denied — Permission denied to delete the folder

Practical Application - Permissions control who can read, write, or delete files — misconfigurations can be exploited.

3. Event Viewer Basics – Track User Logins

Learn to find system logon records.

Press Win + R, type eventvwr, hit Enter.
Navigate to:
```
Event Viewer > Windows Logs > Security
```
Right-click Security → Filter Current Log

win_logs — Open the Filter Current log in Event viewer

In Event ID, enter:
```
4624
```
(for successful logon events)

win_logs_4624 — Enter the event log that you want to search, here "4624"

Click OK. Double-click any event to see login details.

win_log_4624_info — Info about the "4624" event ID

Practical Application - Attackers leave traces, Event Viewer helps track logins and suspicious activity.

4. Simulate a Fake Service using Scheduled Task

Simulate a fake Windows update service using schtasks that silently runs a payload script at every login.

Step 1: Prepare the Payload

Open Notepad and copy the below given script (you will learn about later in detail) then save the file name as log_writer.bat

@echo off
echo Current Date: >> C:\payload\activity_log.txt
date /t >> C:\payload\activity_log.txt
echo Current User: >> C:\payload\activity_log.txt
whoami >> C:\payload\activity_log.txt
echo. >> C:\payload\activity_log.txt

Save the batch file at C:\payload\log_writer.bat
This script logs the date and username to activity_log.txt every time it runs.

Step 2: Create the Scheduled Task

Open PowerShell as Administrator, and run:

schtasks /create /tn "UpdaterTask" /tr "C:\payload\log_writer.bat" /sc onlogon /rl highest

This creates a task named "UpdaterTask" that runs silently at every login with the highest privileges.

Step 3: Test the Task Manually

Run the task immediately to test:

schtasks /run /tn "UpdaterTask"

Now open:

notepad C:\payload\activity_log.txt

You should see the date and user entry.

schtasks_demo — Successful task created and login activity

Step 4: Validate Persistence

Restart your VM or log out and log back in
Open the log file again:

C:\payload\activity_log.txt

You should see a new log entry, showing that the payload ran at login.

Step 5: Cleanup (Optional)

To delete the fake service simulation task:

schtasks /delete /tn "UpdaterTask" /f

schtask_del — UpdaterTask successfully deleted
